HEAT INSULATED PAPER CUP – DIMENSIONS
100/110 – 4 oz
200/250 – 8 oz.
Capacity to brim cl
Capacity in OZ
Rim OD +/- 0,15 mm
Bottom OD mm
Cup material specification
Inner paper cup
Cardboard 250 – 300 gr. + 18-20PE
Heat insulated sleeve with creasing.
Cardboard 250 – 280 gr.
Ink for food packaging
Low migration and low-dour sheet-fed offset ink.
Mineral oil-free printing ink.
Printing method on paper cups

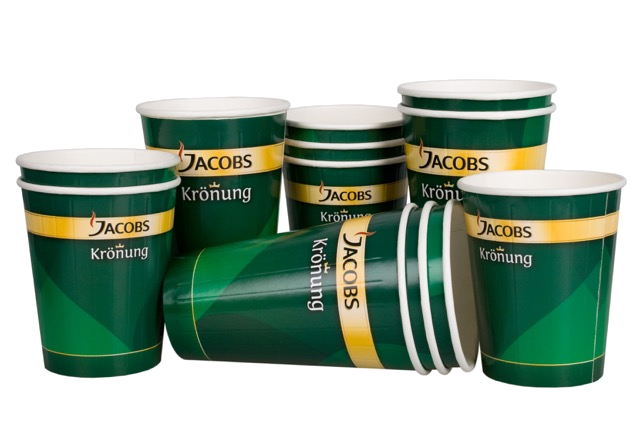

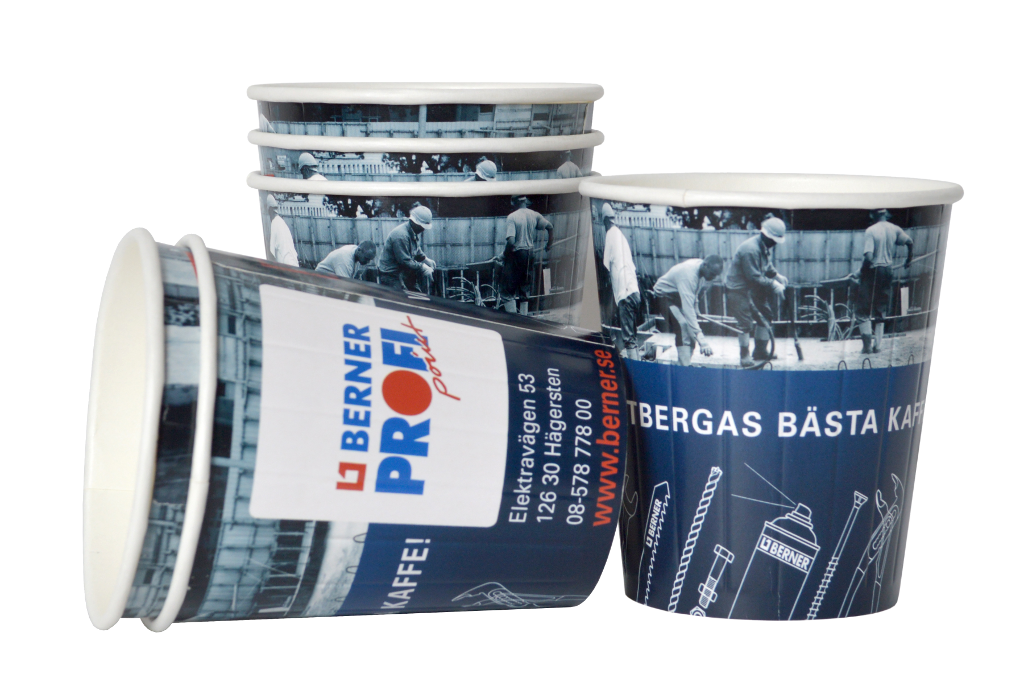

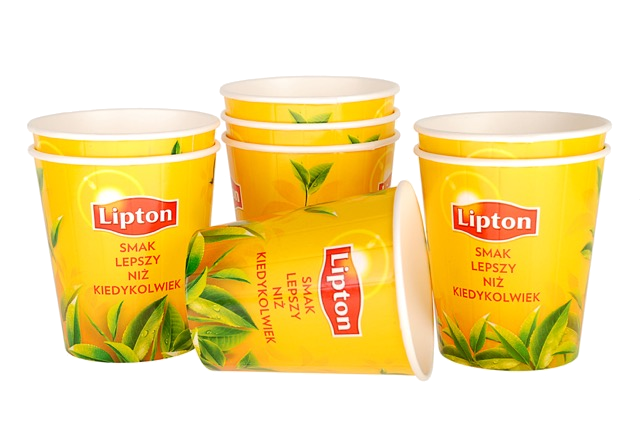

Paper cups are customized by offset printing method. This produces high quality, vibrant full-color finishing to the end product. CMYK printing method is most widely used but PANTONE method can also be used upon request by the customer.
Specially arranged grooves around the cup prevent the adherence of the outer and inner layers, thus minimising the temperature of the cup’s surface. Our paper cups filled with a hot drink are safe and prevent the risk of burning hands.
EU – EP2583913 Thermally insulated cup and insulating cover.
RUS – 113251 Utility models
PL – 220705 Kubek izolowany termicznie oraz osłona izolacyjna do kubka
Design view – Design number 002111443-0001
Minimum order for custom printed paper cups.
The minimum purchase order for custom printed paper cups is 500 units / size.
For orders up to 5000 units paper cups are printed in CMYK technology. For orders from 5000 paper cups possible to print by CMYK or PANTONE.
For orders of 5000 paper cups and more (CMYK printed) customers can order more than one artwork, e.g. 2500 pcs of 8 oz paper cups with artwork 1 + 2500 pcs of 8 oz paper cups with artwork 2. The maximum number of artwork depends on the paper cup is presented in the table below.
|4 oz||8 oz||12 oz||16|
|16 artwork||12 artwork||8 artwork||8 artwork|
PACKAGING AND SHIPPING
|HEAT INSULATED PAPER CUPS PACKAGES 500 pcs.|
|items in a package||20||25||25|
|packages in a box||25||20||20|
|items in a box||500||500||500|
|weight of box kg||3,50||6,04||7,74|
|dimensions of box cm||40x27x23h||40x35x32h||40x40x40h|
|HEAT INSULATED PAPER CUPS PACKAGES 1000 pcs.|
|weight of box kg||7||13||16|
|dimensions of box cm||40х27х40h||40x35x64h||80x40x40h|
PACKAGING IN PALLET
|HEAT INSULATED PAPER CUP|
|items in a|
|packages in a|
|items in a box||1000||500||500||500||500|
|weight of box|
|paper cup in|
|boxes in pallet||32||30||24||24||18|
|pallet sizes cm||120x80x170h||120x80x170h||120x80x170h||120x80x170h||120x80x150h|
- Paper cups with standard print: 1-14 working days.
- Custom printed paper cups orders up to 50 000 paper cups: 7-14 working days.
- Custom printed paper cups orders up from 50 000 till 100 000 paper cups: 14 – 22 working days;
- Custom printed paper napkins: 7-14 working days.
- Accessory for cups : 2 working days.
